DU Horizontal Vacuum Belt Filter

Equipment Introduction

The horizontal vacuum belt filter adopts filtering fabric as the filter medium, which utilizes the material gravity and vacuum suction to realize the separation of the solid and liquid. The belt filter is widely used in solid-liquid separation of metallurgy, mining, petrochemical, chemical, coal washing, paper making, fertilizers, food, pharmaceutical, environmental protection, also the gypsum dehydration of flue gas desulfurization, tailing dewatering and other fields.

CONTACT NOW

Product Detail

Product Tags

Operating Principle

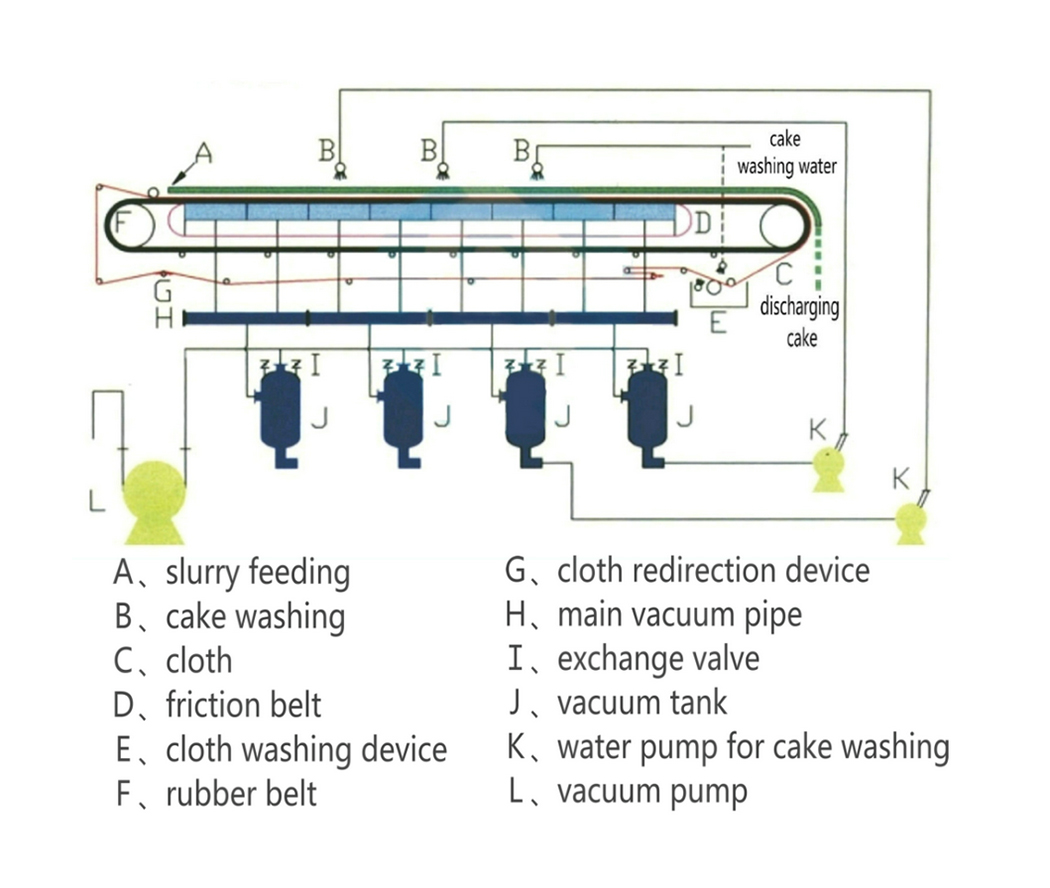

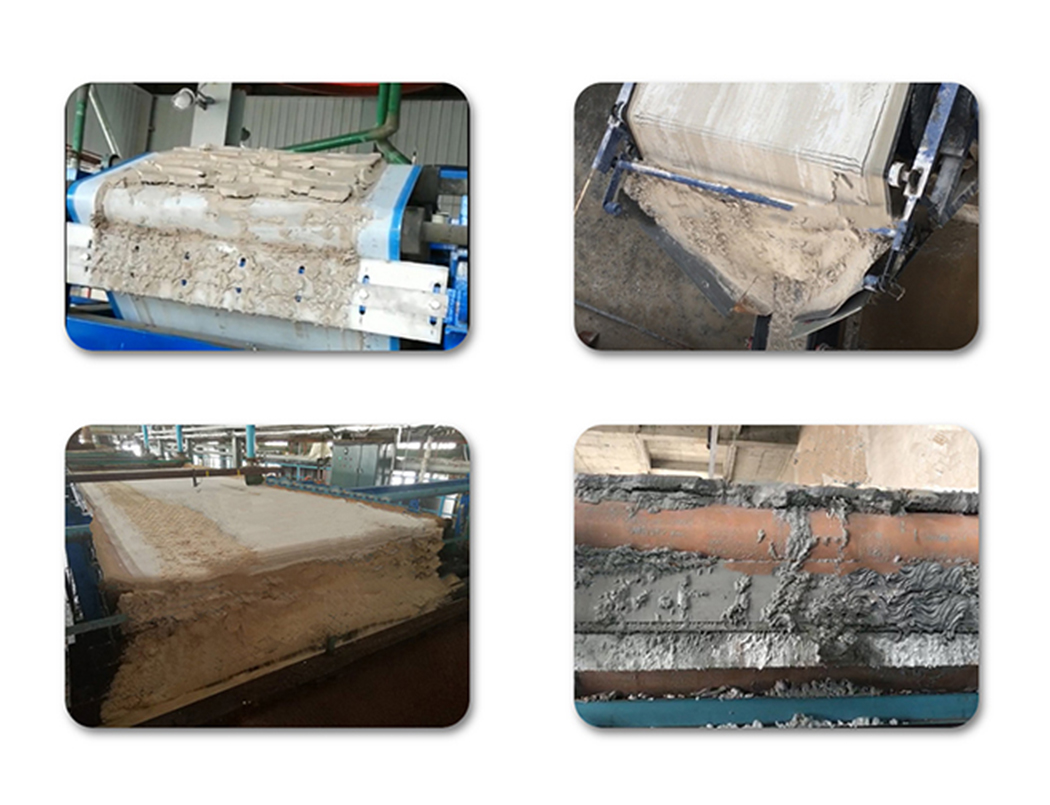

This equipment adopts the fixed vacuum chamber, the rubber belt is driven by the gearbox and running continuously on the vacuum chamber, the cloth moving synchronously on the rubber belt. The friction belt on the slipway of vacuum chamber forming a water sealing structure with rubber belt. The slurry feeding on the cloth smoothly and evenly by feeding hopper. When the vacuum chamber connects with vacuum system, the filtering area with vacuum suction will be formed on the rubber belt, the filtrate pass through the cloth and flow to the grooves and holes of rubber belt to vacuum chamber, the solids formed a cake on the surface of cloth. The filtrate in the vacuum chamber discharged by the vacuum tank. Moving by the rubber belt, the cake moving to the cake washing area and drying area sequentially, then enter into cake discharging area. After discharging cake, the cloth washed by washing system and enter into next filtering cycle.

Features

● Modular design, flexible assembly and convenient transportation are implemented for structure. Also, can deliver the whole assembled equipment after assembly and test running.

● The filter cloth and rubber belt operating synchronously is applied to the filter, which can be finished the process of continuous feeding, filtering, washing, drying and cloth washing.

● The remote control and local control can be exchanged to achieve unmanned operations.

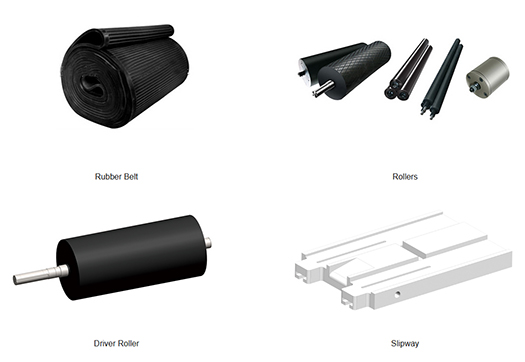

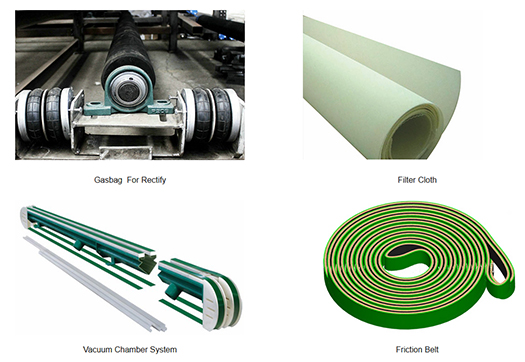

● On the rubber belt support, we can use rollers, air cushion, pallet and multiple friction belts to reduce the friction resistance and prolong the rubber belt life time.

● Use filtrate or clean water for the cake washing, and collect the filtrate by sections.

● Use high pressure water for cloth washing to increase the cloth regenerative effect and the life span.

● Filtrate discharge types include automatic discharge, high level discharge and auxiliary discharge.

● Gas cover or aluminum plastic windows can be designed partial closed or totally enclosed for partial insulation or the centralized collection for the volatile gas or steam of slurry.

Technical Specification

Filtrating area （M2）	Effective width （mm）	Effective length （mm）	Frame length （mm）	Frame width （mm	Frame height （mm）	Weight （T）	Vacuum consumption （m3/min）
2	500	4000	8100	1100	2070	5.5	8
3		6000	10100			6	12
4		8000	12100			6.5	16
5		10000	14100			7	18
6		12000	16100			7.6	22
8	1000	8000	12100	1600	2070	8.8	25
10		10000	14100			9.6	28
12		12000	16100			10.4	30
14		14000	18100			11.1	33
10.4	1300	8000	12100	1900	2170	9.8	28
13		10000	14100			10.8	30
15.6		12000	16100			11.5	35
18.2		14000	18100			13.2	38
20.8		16000	20100			15.1	42
20	2000	10000	14100	2700	2170	14.2	40
24		12000	16100			17.8	48
28		14000	18100			20.2	52
32		16000	20100			23.6	65
20	2500	8000	12100	3200	2270	14.8	40
25		10000	14100			18.6	50
30		12000	16100			22.2	60
35		14000	18100			26	70
40		16000	20100			29.8	80
50		20000	24100			41	95
30	3000	10000	14100	3750	2270	22.8	60
36		12000	16100			27.5	72
42		14000	18100			32.5	85
54		18000	22100			45	105
60		20000	24100			50.5	120
48	4000	12000	16100	4800	2470	39.5	92
56		14000	18100			46.8	110
64		16000	20100			52.6	120
72		18000	22100			58.3	145
80		20000	24100			63	160
144	4500	32500	41200	7100	5500	70	360
