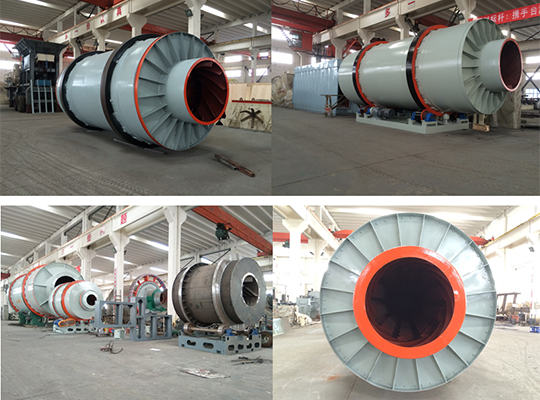

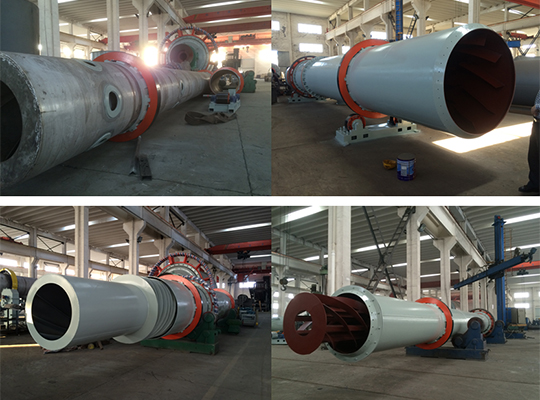

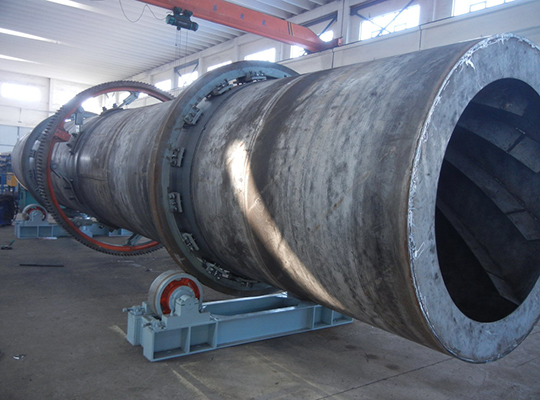

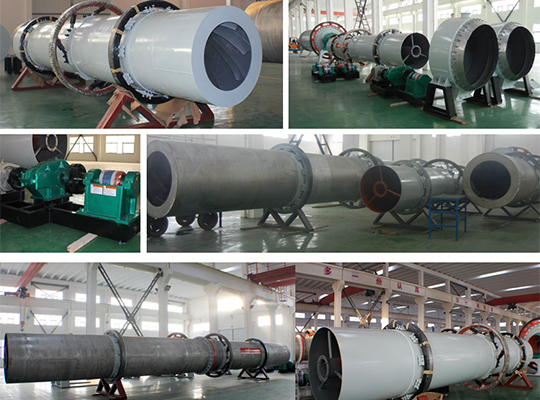

Single Cylinder or Drum Dryer

Single cylinder dryer is traditional and reliable drying equipment, the material will be lifted up and fallen down by the lifting plates inside of the cylinder while the cylinder is rotating, the moisture in the material is continuously evaporated when the material contacts with the hot wind inside of the cylinder, to achieve the purpose of drying materials. It is suitable for drying sludge, coal, sand, animal dung, fly ash, clay, coal slime, ore, steel slag, quartz sand, kaolin clay, bentonite, sawdust, desulfurization gypsum, compound fertilizer, etc.

CONTACT NOW

Product Detail

Product Tags

Performance Characteristics

1. The operation parameters can be changed according to the different material properties, the material in the dryer cylinder can form stable material curtain, to make the heat exchange more fully;

2. New feeding and discharging device, put an end to the phenomenon of the plug-in feeding, incontinuity, nonuniform and material return of traditional dryer, and reduce the load of dust removal system;

3. The adjustable stainless-steel plates’ sealing are adopted at the connection of the feeding and discharging devices, it’s with good sealing property, which greatly reduces the thermal losses inside of the cylinder, so as to directly reduce the fuel consumption;

4. Counterflow drying method, it can obtain higher evaporation intensity; downstream drying method and indirect drying method are suitable for drying materials which are sensitive to temperature;

5. Fuel can be diesel oil, heavy oil, and natural gas, gas, coal, electricity and biomass particles for environmental protection;

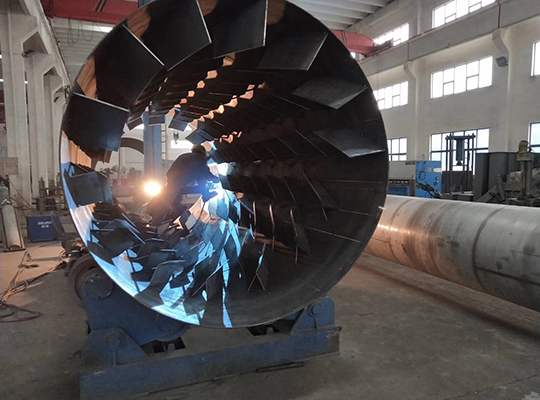

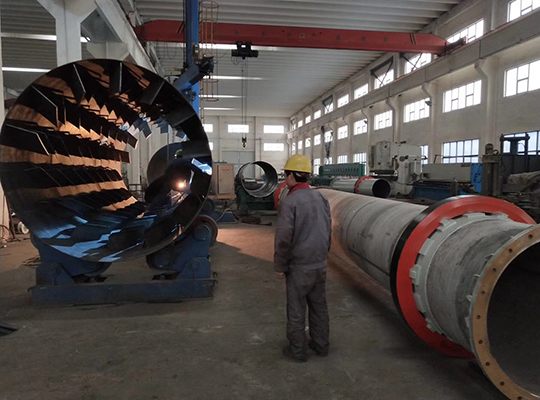

6. All kinds of different types of lifting plates combination, to ensure the hot air is in full contact with the material, and meet the needs of drying different material.

Technical Parameters

Model	Cylinder diameter (mm)	Cylinder length (mm)	Cylinder volume (m3)	Cylinder rotary speed(r/min)	Power (kW)	Weight (t)
VS0.6x5.8	600	5800	1.7	1-8	3	2.9
VS0.8x8	800	8000	4	1-8	4	3.5
VS1x10	1000	10000	7.9	1-8	5.5	6.8
VS1.2x5.8	1200	5800	6.8	1-6	5.5	6.7
VS1.2x8	1200	8000	9	1-6	5.5	8.5
VS1.2x10	1200	10000	11	1-6	7.5	10.7
VS1.2x11.8	1200	11800	13	1-6	7.5	12.3
VS1.5x8	1500	8000	14	1-5	11	14.8
VS1.5x10	1500	10000	17.7	1-5	11	16
VS1.5x11.8	1500	11800	21	1-5	15	17.5
VS1.5x15	1500	15000	26.5	1-5	15	19.2
VS1.8x10	1800	10000	25.5	1-5	15	18.1
VS1.8x11.8	1800	11800	30	1-5	18.5	20.7
VS1.8x15	1800	15000	38	1-5	18.5	26.3
VS1.8x18	1800	18000	45.8	1-5	22	31.2
VS2x11.8	2000	11800	37	1-4	18.5	28.2
VS2x15	2000	15000	47	1-4	22	33.2
VS2x18	2000	18000	56.5	1-4	22	39.7
VS2x20	2000	20000	62.8	1-4	22	44.9
VS2.2x11.8	2200	11800	44.8	1-4	22	30.5
VS2.2x15	2200	15000	53	1-4	30	36.2
VS2.2x18	2200	18000	68	1-4	30	43.3
VS2.2x20	2200	20000	76	1-4	30	48.8
VS2.4x15	2400	15000	68	1-4	30	43.7
VS2.4x18	2400	18000	81	1-4	37	53
VS2.4x20	2400	20000	91	1-4	37	60.5
VS2.4x23.6	2400	23600	109	1-4	45	69.8
VS2.8x18	2800	18000	111	1-3	45	62
VS2.8x20	2800	20000	123	1-3	55	65
VS2.8x23.6	2800	23600	148	1-3	55	70
VS2.8x28	2800	28000	172	1-3	75	75
VS3x20	3000	20000	141	1-3	55	75
VS3x23.6	3000	23600	170	1-3	75	85
VS3x28	3000	28000	198	1-3	90	91
VS3.2x23.6	3200	23600	193	1-3	90	112
VS3.2x32	3200	32000	257	1-3	110	129
VS3.6x36	3600	36000	366	1-3	132	164
VS3.8x36	3800	36000	408	1-3	160	187
VS4x36	4000	36000	452	1-3	160	195
