VS1720A Super-large Grinding Mill

VS1720A Super-large Grinding Mill

VS1720A Super-large grinding mill is mainly used in chemical industry, for instance, grinding glass, rubber, pesticides, enamel, paint, phosphate fertilizer, paper. Hardness below seven Moh’s hardness following humidity below 6% non-flammable and non-explosive materials. Such as: talc, barite, calcite, limestone, manganese ore, iron ore soil, chrome ore, quartz, gypsum, bentonite, etc.


Product Detail

Product Tags

Features and Benefits

1. High Output & Low Consumption -- Compared with same capacity φ1250 vertical mill, 25% power is being saved;

2. Less Floor Space -- Floor Space:150 sq.m. Compared with same output and granularity, one third floor space is being saved than 6 pcs of 4R3220 Raymond mills (1 pc takes 56 sq.m) So VK1720 will reduce investment in infrastructure.

3. Large Transmission Capacity -- Blower adopts integrated type and recycled water-cooling system. The assembly requires access to cooling water circulation.  The air volume and air pressure are greatly increased, so as to greatly improve the ability of pneumatic conveying.

4. High Collecting Efficiency -- Cyclone collector adopts parallel double cyclone collector, 10-15% higher than the single cyclone collection efficiency.

5. High Classifying Capacity -- Classifier adopts built-in large taper blade turbine classifier. The outlet fineness can be adjustable from 80-600 mesh.

6. Strong Ability of Shoveling Material -- Adopting super large shovel blade to shovel as much as possible to the grinding area between the roll and ring.

7. Energy-conservation and Environment-protection -- Equipped with pulse dust collector in surplus wind outlet, collection efficiency is as high as 99.9% to keep workshop environmental health.

8. Electrical Control Cabinet: PLC control system is optional.

9. Grinding Roller Assembly: Adopting floating-sealed type (see the drawing of roller assembly)

Technical Data

(1)Main Unit

Model

VS1720A

Max feeding size

35mm

Finished product size

400~80mesh (38-180μm)

Capacity

6~25t/h

Rotating speed of central shaft

92r/min

Inner diameter of grinding ring

Φ1720mm

Outer diameter of grinding ring

Φ1900mm

Roller dimension (outer diameter*height)

Φ510×300mm

(2)Classifier

Diameter of classifier rotor

φ1315mm

 (3)Air Blower

Wind volume

75000m3/h

Wind pressure

3550Pa

Rotating speed

1600r/min

(4)Whole set

Gross weight

46t

Total installed power

442.5KW

Overall dimension after installation(L*W*H)

12500mm×12250mm×10400mm

 (5)Motor

Installed position

Power(kW)

Rotating speed(r/min)

Main unit

200

1450

Classifier

37

1470

Blower

200

1450

Pulse dust collector

5.5

1460

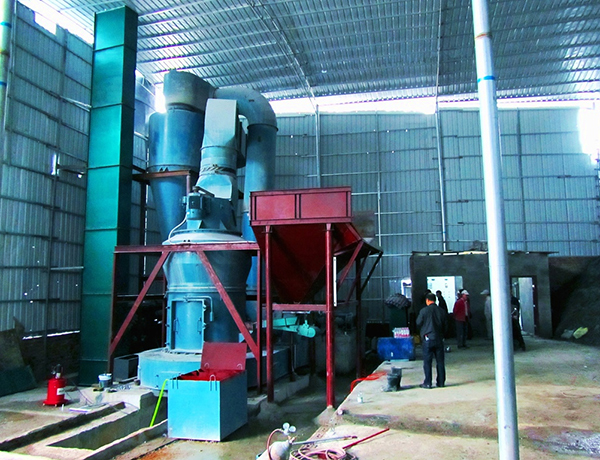

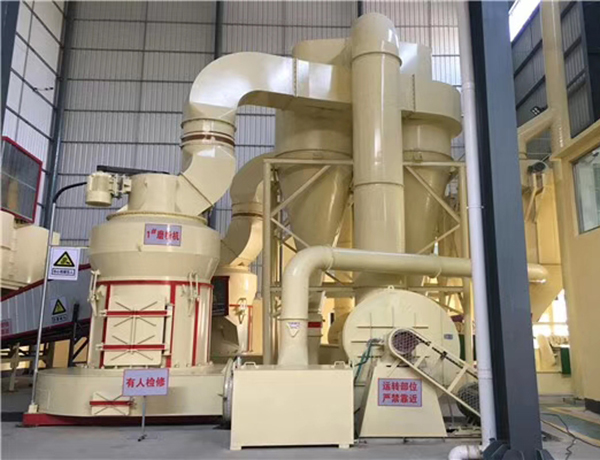

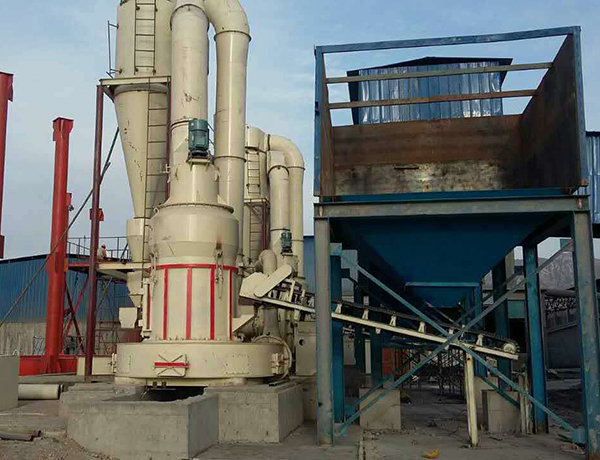

Working Sites’ Pics
