Vibrating Feeder for Materials Feeding
Vibrating Feeder for Materials Feeding
Features
The latest super short liner vibrating feeder;
Designed specifically for feeding large lump of materials;
It can screen the materials efficiently under the condition of guaranteeing continuous and uniform feeding.
Characteristics
● Simple structure and low operating cost;
● High efficiency and low consumption;
● Sand Making Machine has the function of fine crush and crude grinding;
● Slightly influenced by the moisture content of material, and the max moisture content is 8%;
● More suitable for crushing mid-hardness and high-hardness materials;
● Cubic shape of final products, high density of piling up and low iron pollution;
● More wearable and easy maintenance;
● Low working noise and light dust pollution.
Main Technical Parameters
|
Model |
Specification (mm) |
Max. Feeding Size (mm) |
Speed (rpm) |
Throughput (t/h) |
Power (kW） |
Weight (kg) |
|
ZSW3090 |
900x3000 |
400 |
600~850 |
90-180 |
11 |
3450 |
|
ZSW3896 |
960x3800 |
500 |
600~850 |
120-210 |
15 |
4450 |
|
ZSW4211 |
1100 x4200 |
650 |
600~850 |
180-400 |
15 |
4750 |
|
ZSW4911 |
1100x4900 |
650 |
600~850 |
250-480 |
22 |
5350 |
|
ZSW4913 |
1300x4900 |
750 |
600~850 |
340-600 |
22 |
6350 |
|
ZSW6013 |
1300x6000 |
750 |
600~850 |
340-600 |
30 |
6800 |
|
ZSW6015 |
1500x6000 |
1000 |
600~850 |
400-800 |
37 |
7050 |
|
ZSW6018 |
1800x6000 |
1000 |
600~850 |
450-900 |
37 |
8669 |

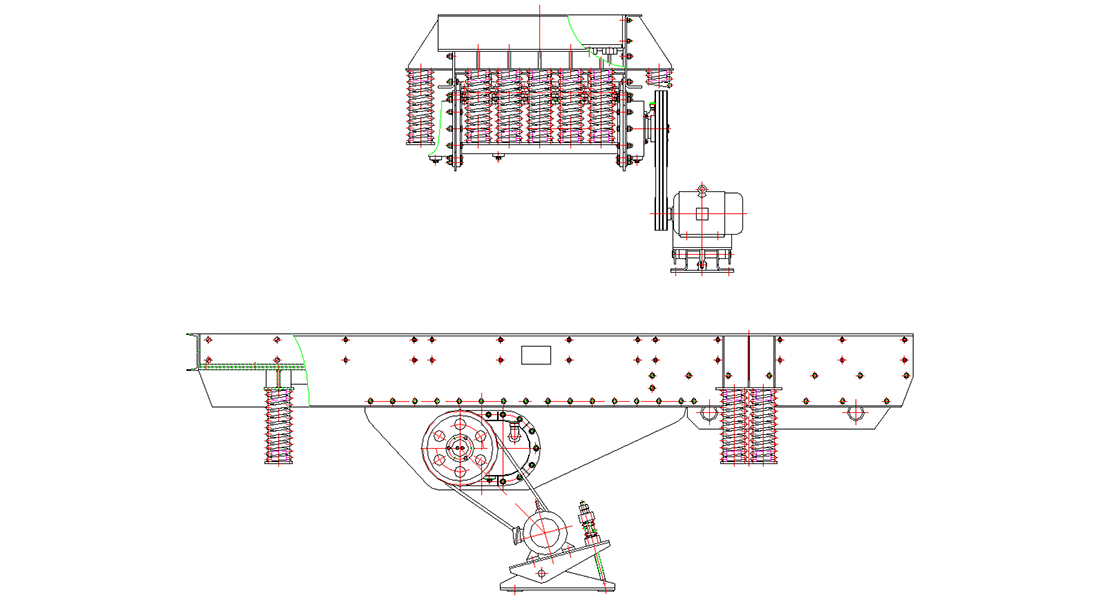

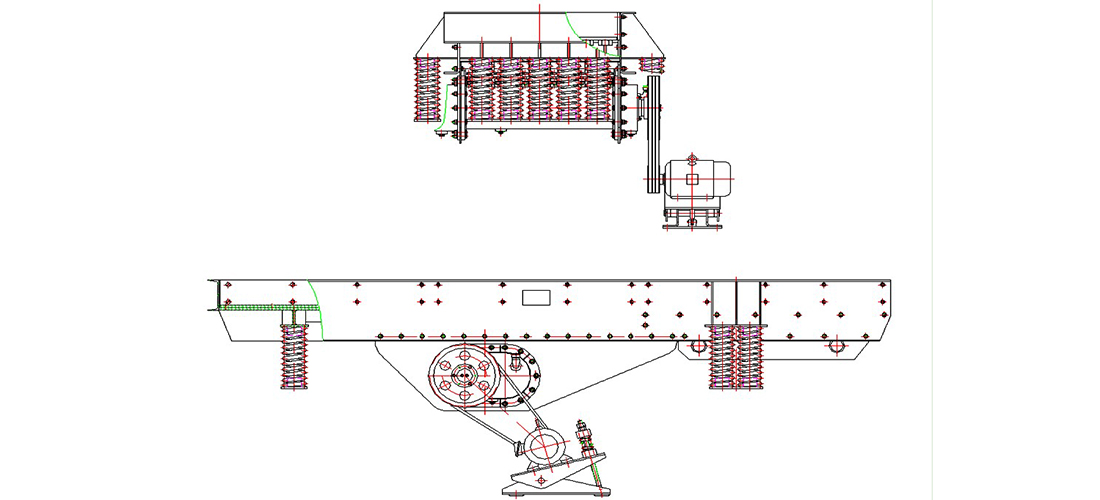

Structural Sketch

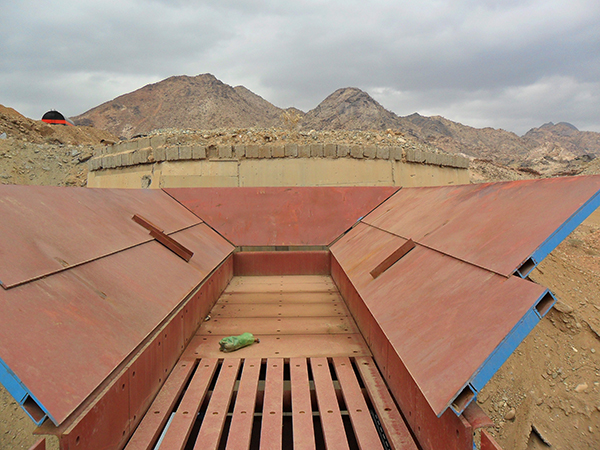

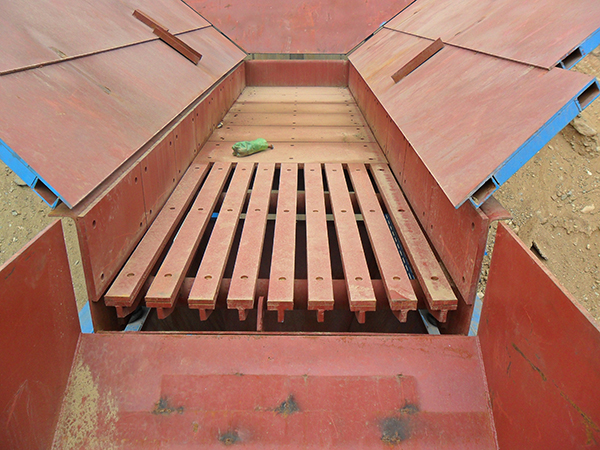

Hopper
Details
